EKATO

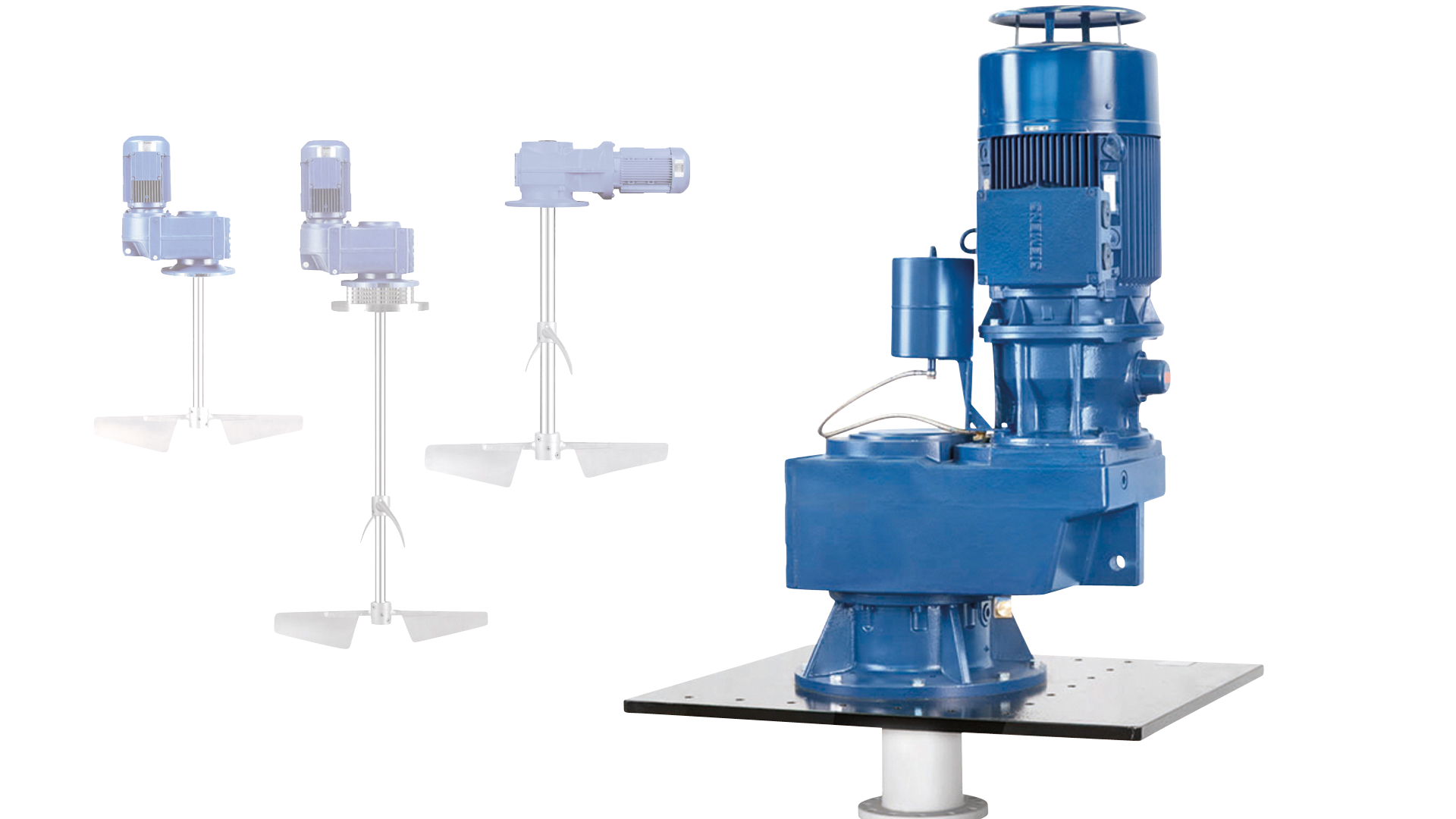

Compact Agitators FD/KD/HWL-A

Agitators Designed for Open or Low Pressure Vessels

The compact EKATO agitators FD, KD and HWL-A are designed for open vessels or those which have a low pressure. Their robust design and excellent smoothness when operating make them extremely reliable, even when mixing media with high solid contents. Further advantages are the low overall height and the modular design which ensure maintenance at low cost and an easy modification of the agitator, if necessary.
Motor Power 0,75 - 400 kW
Shaft Diameter 40 - 800 mm
Operating Pressure Atmospheric – 4 bar
Impeller-Systems EKATO high efficiency impellers and conventional impellers
Materials (product wetted) Carbon steel, rust- & acid resistant steels, nickel-base alloy, Duplex- & Super Duplex steels, titanium & titanium alloys, rubber coatings, coatings
Approval ATEX 2014/34/EU & GOST TR-ZU 010/2011
  • Drive versions with flat- or bevel gearbox
  • Massive- or hollow shaft
  • Divisible shaft with flange coupling
  • Mounting flange or –plate
  • Strengthened bearing inside of the gearbox
  • Available with a compact sealing lantern, including: Rubber coated shafts and impellers for highly abrasive and corrosive products with high solid contents (E.g. for flue gas desulfurization or processing of ore)
  • Steady bearing
  • V-ring
  • Shaft seal ring
  • Water seal
  • Safety labyrinth seal or
  • Stuffing box

Downloads

The following material is available for download.

Related Topics

You may also be interested in these topics

Wendel_g-scaled-aspect-ratio-5-4

Impellers

In recent years, the requirements for mixing systems in industrial applications have increased steadily. The design of the impellers, the selection of…

Learn more
HWL_N_1400x800-aspect-ratio-5-4

Reactor Agitators HWL-N

The reactor agitators type HWL-N are the most powerful agitators within EKATO’s product range, with drive powers of up to 4000 kW.

Learm more
ESM_16-9_-aspect-ratio-5-4-1024x819-1

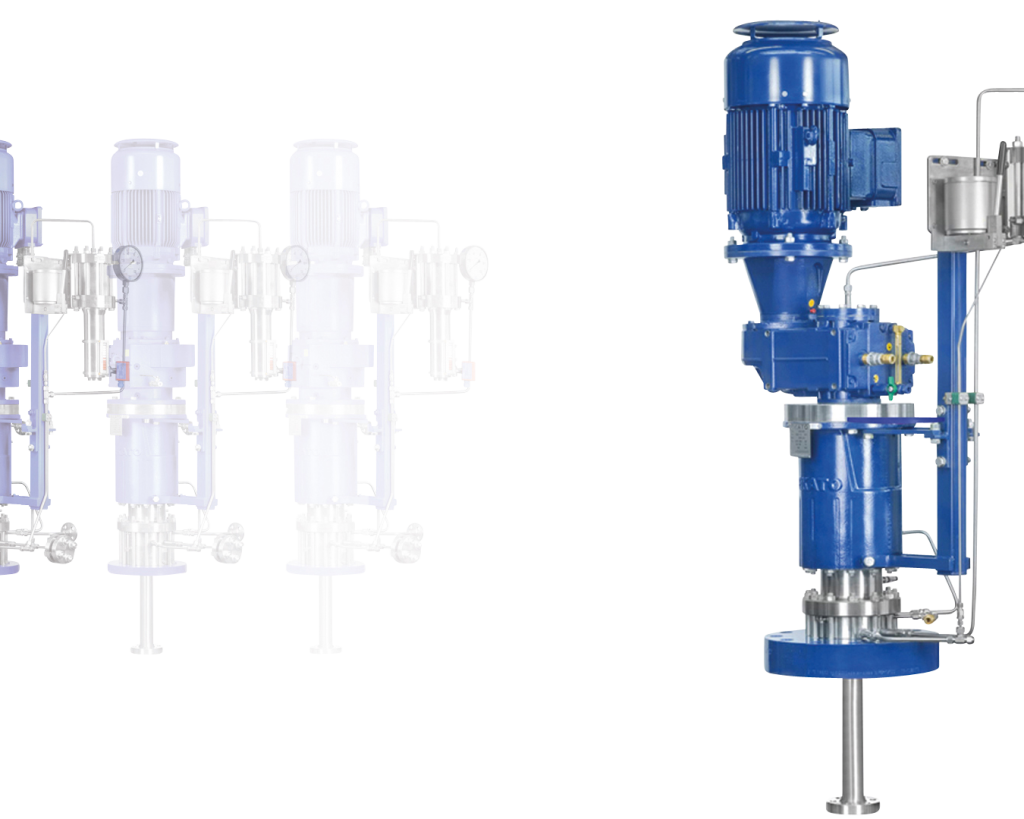

Magnetic Safety Agitators ESM
